QN8066 Arduino Library Examples

This directory presents some examples with the transceiver QN8066

There is a Facebook group called QN80XX FM Transmitters & Receivers Enthusiasts where the purpose is exchanging experiences with projects based on Quintic QN80XX IC family. You will be welcome there.

IMPORTANT

This project centers around a library designed to control QN8066 devices using the Arduino platform, with a primary focus on the “QN8066 Arduino Library” and its functionalities. The idea of this library is to offer users an abstraction layer for operating the QN8066 device. It is not the focus of the project author to address user interface issues. Therefore, please refrain from asking for assistance with displays, encoders, buttons, or any other components outside the scope of the “QN8066 Arduino Library.” Thank you.

Notice to Users Regarding Examples and this library

The examples shown in this library use 106.9 MHz as the test frequency. Consider changing this frequency to another of your preference. Be aware that the use of FM transmitters is regulated by the laws and regulations of each country. It is crucial to ensure that your use of any FM transmitter complies with the applicable legal requirements and does not violate any broadcasting regulations.

This library is under active development and may be updated with new features or bug fixes. Although the implemented functions have been tested with the examples, it is possible that in some situations it may present issues or not respond as expected. Therefore, I ask users to contact me (pu2clr@gmail.com) to report any problems. I will do my best to resolve or clarify the issue as quickly as possible. Thank you.

QN8066 Basic Setup

The following electrical circuit demonstrates the basic interface configurations of the QN8066 device with an Arduino microcontroller based on the ATmega328 or an equivalent, such as the LGT8F328. It can be easily adapted for use with other microcontrollers.

QN8066 Basic Setup

By default, this library assumes that the active crystal or oscillator/signal generator used operates at 32.768 MHz. However, it is important to note that the system can be configured with other frequencies, such as 32.768 kHz or values above or equal to 1,310.720 kHz that are divisible by 32.768 (see the setup() and setXtal() functions). See the section below for more details.

Active Crystal and Arduino Library setup

The QN8066 requires an external clock signal on pin 14 (XCLK) to operate correctly. This signal, provided by a clock generator, can be either sinusoidal or square in form. The library includes specific functions for configuring this clock source, ensuring that the QN8066 receives the appropriate signal for efficient operation.

The reference clock for the QN8066 is 32.768 kHz. It is important that you use a signal source with this value or a multiple of this value. Thus, if you are using a 32.768 MHz active crystal, you must specify a divisor of 1000 to the system (it is the default value used by this library), indicating that the signal source value divided by 1000 will result in 32.768 kHz.

The table below shows some tested sources (active crystal or signal generator) and divider values.

Source (kHz) Divider
32.768 1
> 32.868 and < 1,310.720 did not work
1,310.720 40
1,638.400 50
3,276.800 100
13,107.200 400
16,384.000 500
32,768,000 (default) 1000

Note in the table above that values between 65.636 kHz and 1,310.720 kHz did not work. Only an active crystal of 32.768 kHz or a multiple of this value above or equal to 1,310.720 kHz worked in the tests conducted by the author of this library. By default, this library assumes that you are using a 32.768 MHz signal source.

See some functions of this library that deal with QN8066 external source clock:

The pictures below show some active crystals used during the tests.

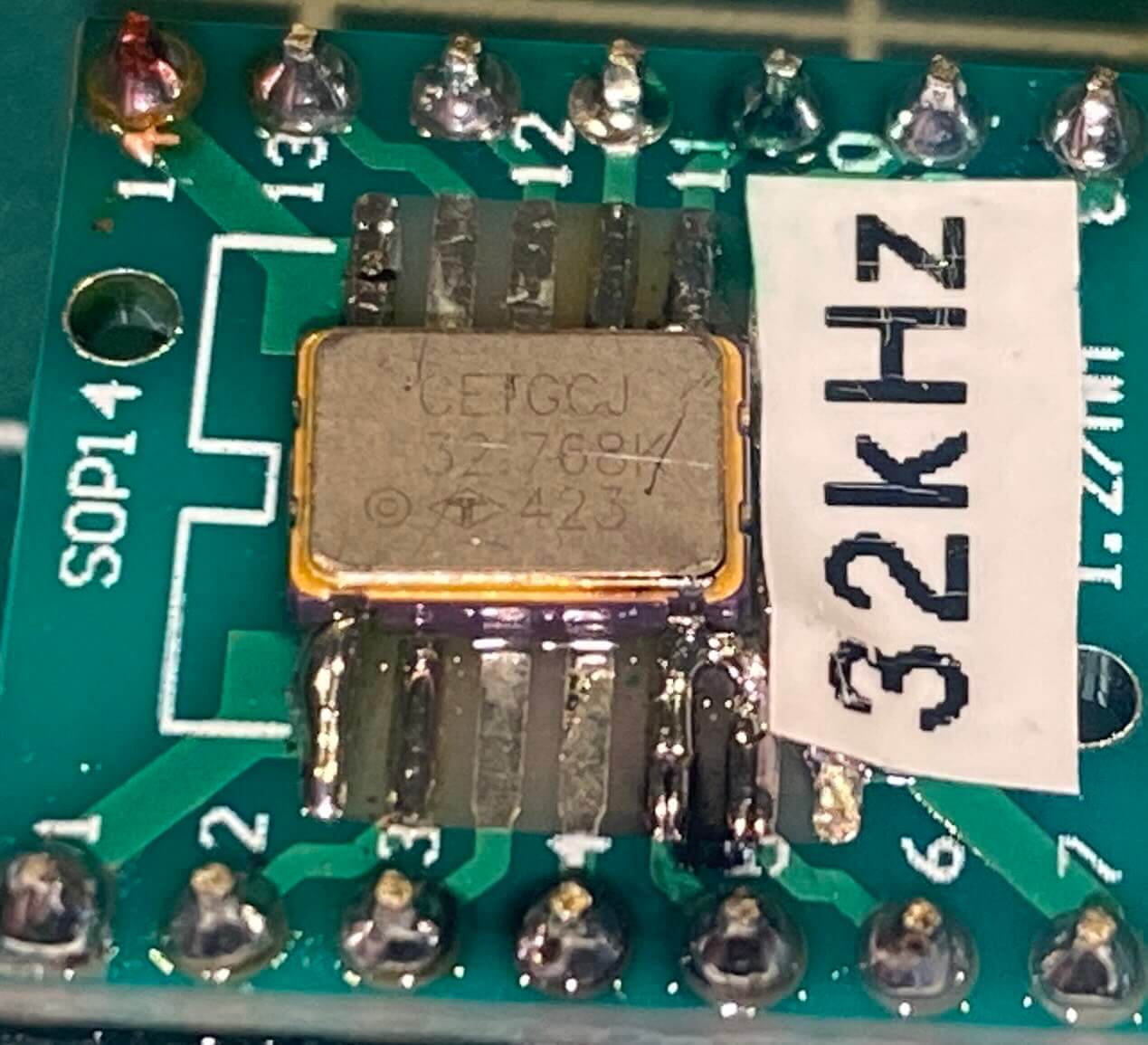

32.768 kHz active crystal

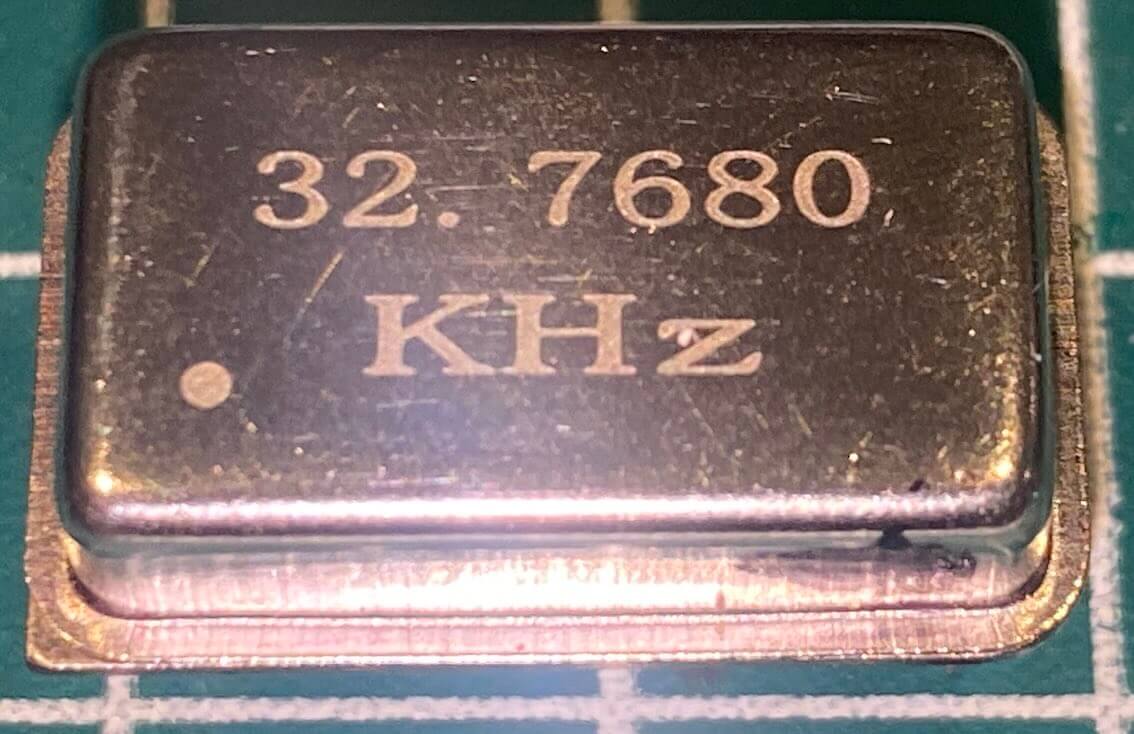

Other 32.768 kHz active crystal

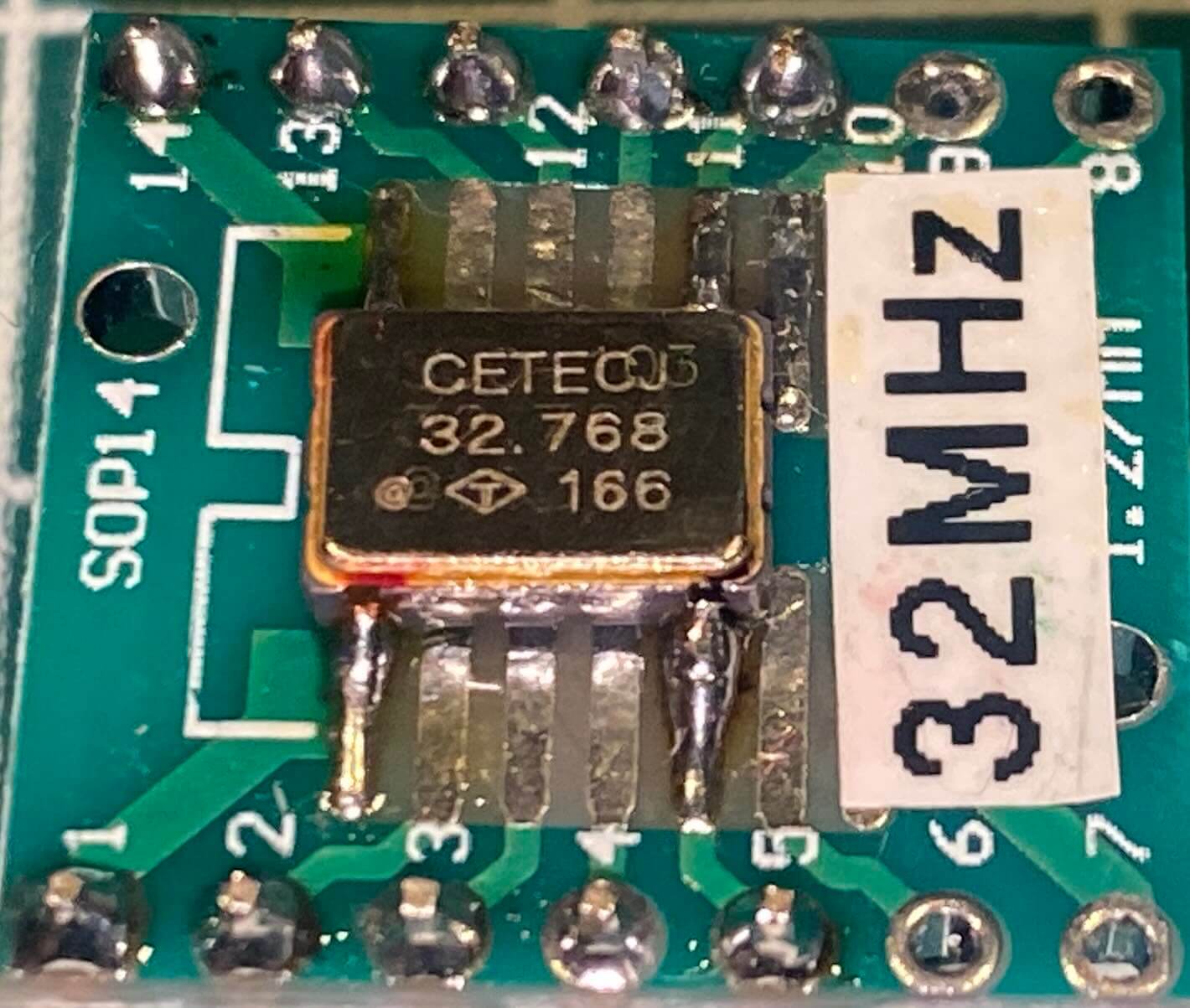

32.768 MHz active crystal

See these sketches showing active crystal setup:
